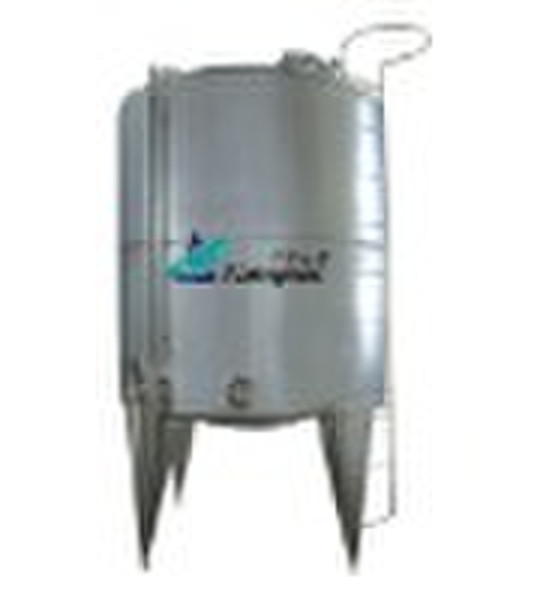

3-layer cooling and heating Tank

Heating and cooling tank Standard cutting and welding machine for manufacturing of tank. Application Field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc Mateial: SUS304 SUS316L Jacket for heating and cooling water or for mixer of glycol and water, or oil Isolation: PU foam or rock woolConfiguration: Manhole CIP cleaning ball Adjustable leg Thermometer (according to customer requirement) Ladder (according to customer requirement) Jacket (according to customer requirements) Liquid lever meter and lever controller Effective volume (L) Dimension of tank(d × h ) (mm × mm) Total height (mm) Diameter Of inlet & outlet Heat preservation layer Δ (mm) 500 840 × 1000 2250 38 60 600 920 × 1000 2300 38 60 700 990 × 1000 2300 38 60 800 950 × 1220 2500 38 60 900 1010 × 1220 2500 38 60 1000 1060 × 1220 2550 51 60 1500 1160 × 1500 2850 51 60 2000 1340 × 1500 2900 51 60 3000 1410 × 2000 3400 51 60 4000 1620 × 2000 3450 51 60 5000 1810 × 2000 3500 51 60 6000 1980 × 2000 3550 51 60 7000 1930 × 2440 4000 51 60 8000 2060 × 2440 4000 51 60 9000 2180 × 2440 4050 51 60 10000 2300 × 2440 4050 51 60 12000 2270 × 3000 4600 51 60 15000 2530 × 3000 4700 51 60 20000 2640 × 3660 5400 51 60
