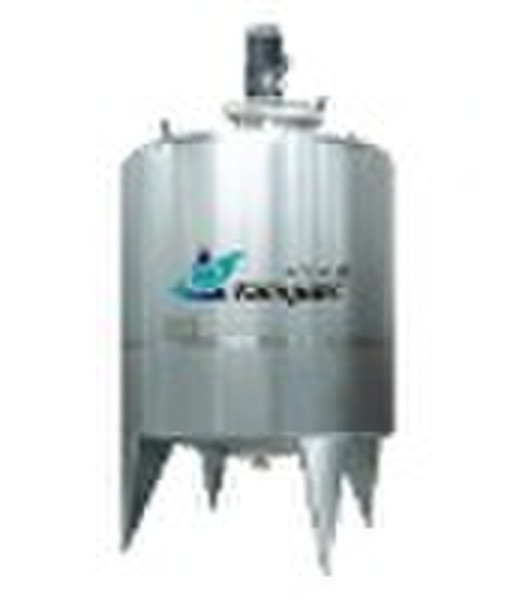

Mixing Tank

Mixing Tank Applicable range: Foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc Material: SUS304 or SUS316L Single or jacket ( with isolation) Agitator: Chinese or Europen SEW Paddle: Scrape type or frame type, angle type Configuration option: 1. Manhole 2. Cleaning ball 3. Air vent 4. Adjustable legs 5. Thermometer PT100 type 6. Ladder volume (L) Dimension(D× h ) (mm) Total height (mm) Diameter Of inlet & outlet Heat preservation layer Δ (mm) 500 840 × 1000 2250 38 60 600 920 × 1000 2300 38 60 700 990 × 1000 2300 38 60 800 950 × 1220 2500 38 60 900 1010 × 1220 2500 38 60 1000 1060 × 1220 2550 51 60 1500 1160 × 1500 2850 51 60 2000 1340 × 1500 2900 51 60 3000 1410 × 2000 3400 51 60 4000 1620 × 2000 3450 51 60 5000 1810 × 2000 3500 51 60 6000 1980 × 2000 3550 51 60 7000 1930 × 2440 4000 51 60 8000 2060 × 2440 4000 51 60 9000 2180 × 2440 4050 51 60 10000 2300 × 2440 4050 51 60 12000 2270 × 3000 4600 51 60 15000 2530 × 3000 4700 51 60 20000 2640 × 3660 5400 51 60
